High Precision and Reliability
The Discproducer PP-100II is built to withstand hard knocks and keep dust out. The solid body provides a sturdy housing for the intricate technologies within to run processes smoothly without any interruption.
With AcuGrip™ robotic arm, which handles one disc at a time, reduces the risk of incurring scratches on the disc, often caused by conventional sliding mechanisms and prevents interruptions during unsupervised production, caused by mechanical blockage.
Unrivalled Performance with Cost Savings
Epson’s industry-leading Micro Piezo print head and ink technology ensure uniform, stable ink droplets with virtually no satellites or misting, producing brilliant and crisp disc labels at a high resolution of up to 1440 dpi x 720 dpi.
Epson’s Micro Piezo™ technology also protects against striation and ink bleed, and allows ultra-fine colour graduation plus razor-sharp text – even in small font sizes.

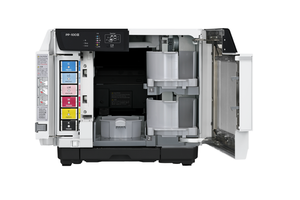

Instead of traditional whole cartridges, Discproducer utilises six individual highcapacity ink cartridges that are easily replaced in a few seconds, thus allowing you to print more while keeping running costs low.
Convenient and Fuss-Free Operation
The ""Total Disc Maker"" software is easy to use for fast and efficient production of CDs and DVDs in just three simple steps:
Step 1: Compile Data. Disc Editing mode lets you indicate the type of data to be burned – for example a music, video or data disc – then load the data and save it into a created folder. It’s quick and easy, so even nonexperts and novices will find it a breeze.
Step 2: Compose the Print Image. Label Editing mode lets you compose your CD/DVD label using pre-defined templates and provided images or even customize your own design. Preview your finished composition and store it for easy retrieval in the future.
Step 3: Configure for Production. Publishing mode lets you set parameters such as the number of CDs or DVDs to be burned, the burning and print speed, the in/out trays for discs, and print resolution. Then simply press “Publish” and your production run is on its way.
Monitoring System Reliability
The Monitoring Software keeps you informed about all-important parameters such as tray status and pending jobs. It helps you choose whether to let your production run continue unattended, and protects you against unexpected interruptions, especially when facing tight deadlines.
Compact Design

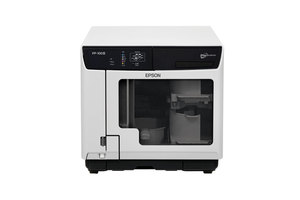

At less than 40cm wide, the PP-100III is one of the smallest systems in its class. Its flat top allows for another unit to be stacked above to save space or be used as storage surface for media and print cartridges.
Convenient Total Front-Operation
The PP-100II comes with the exclusive feature of a two-line LCD display which is a built-in status monitor to display ink levels, helping to alert you and reduce production errors.
Blu-Ray Supported for PP-100III
The PP-100III is Blu-ray, DVD and CD publisher, combining proven features with design enhancements. Capable to produce precise and reliable results, it can burn and print up to 8 Blu-Ray discs per hour with the USB 3.0 SuperSpeed interface.
Versatile Operating Modes
Choose from three operating modes to suit your production:
Batch Mode - for larger runs of up to 100 discs
Standard Mode - for smaller runs of up to 50 discs
External Mode - for up to 5 discs

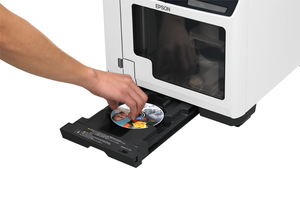

The PP-100III includes mixed media support for simultaneous production of CDs and DVDs by specifying the setting for each stacker. It also has an additional drawer for up to 5 discs, so individual CD/DVD blanks can be conveniently removed without having to open the housing.
Ideal for a Wide Range of ApplicationsThe fully automated PP-100III is designed to deliver highly reliable data burning and photo-realistic printing for all kinds of applications, leaving you free to focus on other tasks.
What's in the box:
CD-ROM (Printer Driver, Application Software, User’s Guide)
Paper Manual (Setup Guide)
6 Ink Cartridges (Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Black)
AC Cable
Warranty card
Publishing Speed:
CD (Burn and print): Up to 30 discs / hourDVD (Burn and print): Up to 15 discs / hourBD (Burn and Print): Up to 8.5 discs / hourPrinting Only (CD / DVD / BD): Fast Mode: Up to 65 discs / hour
Fine Mode: Up to 45 discs / hour
Publishing Modes (Unattended):
Standard Mode: Up to 50 CDs / DVDs / BDsBatch Mode: Up to 100 CDs / DVDs / BDsExternal Output Mode: To stacker 3: Up to 50 CDs / DVDs / BDs
To stacker 4: Up to 5 CDs / DVDs / BDs
Printer Module:
Print Resolution: Fast Mode: 1440 dpi x 720 dpi
Fine Mode: 1440 dpi x 1440 dpi
Ink System:
CD/DVD Drives:
Interface:
Software:
Computer Requirements:
Warranty:
Electrical Specifications:
Consumables:
Recommended Links:
Notes:
*Blu-Ray DiscTM is a trademark owned by Blu-Ray Disc Association (BDA) and licensed for use on discs, players and other products that use BDA's optical disc format for high definition audio-video and high capacity data software applications. Blue-Ray DiscTM, Blue-RayTM, and the logos are trademarks of the Blu-Ray Disc Association.
1 Fast mode, writing speed: Up to 40x, CD: 600MB data volume
2 Printing only (CD/DVD/BD) in Fast Mode
