ColorWorks Epson ColorWorks C3510

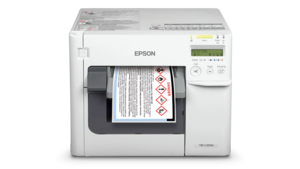

Epson ColorWorks C3510 Color Label Printer

IDEAL FOR PRINTING COLOUR LABELS, TAGS, TICKETS, GHS COMPLIANCE LABELS ON-DEMAND

Epson’s C3510 delivers high quality colour labels on-demand to improve efficiencies and reduce labeling costs.

  • Print Width: 25mm to 104mm
  • Print Resolution: Up to 720 dpi x 360 dpi
  • Speed: Up to 103mm/sec
  • Colour: CMYK individual ink cartridges



Colour Labels On-Demand
Print colour codes, images and pictograms to highlight relevant information easily. Designed to meet the needs of customers producing high-mix, low-volume applications, the C3510 allows you to print multiple label variations in a breeze, improving product identification and productivity.
With printing speeds at up to four inches per second and a new 4-colour system, this printer deliver stunning image resolution. The addition of black ink increases the range of colour customers can reproduce.

Better Inventory Management
On-demand printing means you don’t have to stock up on expensive pre-printed colour labels you may never use. By leveraging this printer's on-demand colour labelling technology, you save up to as much as 50% on labelling costs and increase work productivity.

BS5609 Certified
Meet your regulatory requirements within the chemical industry with GHS-compliant labels. The C3510 label printer, Epson’s pigment inks and its wide variety of approved media are also BS5609 certified, making this label printer the ideal low-cost solution for the GHS market.

Superior Print Quality
Ensure sharp print images on every label. Epson’s patented MicroPiezo® inkjet technology together with our DURABrite Ultra® pigment inks ensure labels with crisp, clear, easy-to-read text, barcodes and vibrant graphics that are long-lasting, quick-drying and fade resistant. The printouts are resistant to smudges and water, even on paper.
With the auto nozzle check system, high-tech sensors detect clogs and ink droplets and quickly clean the nozzle so you get a reliable output of professional quality print labels each and every time.

High Capacity Individual Ink Cartridges
With individual CMYK cartridges, you only need to replace each colour as it is used up. This means no wastage of ink and the ability to print large volumes continuously for greater savings and reduced production time.

Wide Variety of Media
Print on a wide range of media and enjoy on-demand colour labels in any environment. From plain, synthetic, matte to glossy stock, the C3510 ensures labels of superior print quality, giving you sharp graphics and photos. This label printer also handle roll, fanfold, die cut or continuous label media.

Ease-of-use and Maintenance
The C3510 is compact and supports all major label software applications. Easy installation and maintenance allow manufacturers to monitor ink supply levels on an LCD display and oversee multiple network printers in a system, reducing set-up time and minimising operational delays.

Environmental Protection
Unlike thermal printers or other inkjet technologies, Epson’s MicroPiezo® inkjet technology uses no heating components. This means that energy consumption is extremely low during printing or in standby mode. In addition, the C3510 is compliant with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives, thus ensuring continued contribution to the protection of our environment.

Printing Technology:


Technolgy: MicroPiezo® ink jet technology, serial ink jet dot matrixColour: Four-colour printing, individual ink cartridge (DURABrite Ultra pigment ink: C, M, Y, K)

Ink Cartridge:


Colour: Cyan, Magenta, Yellow, BlackModel: SJIC23P(C), SJIC23P(M), SJIC23P(Y), SJIC23P(K)

Printing:


Print Resolution: Up to 720 × 360 dpiMax. Print Width: 104mm (Max. 1,474 dot positions / 360dpi)Max. Print Speed: 103mm/sec. (Printing Width: 56mm, 360 x 360 dpi, Bi-directional Printing)

Connectivity:


Interface: Hi-Speed USB 2.0 and Ethernet (100BASE-TX /10BASE-T)

Print Fonts:


Print Fonts: Not equipped with print fonts; prints all data as the graphic data

Barcode Font (Printer Driver Built-in):


Barcode: Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded
Two-dimensional symbols: PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code

Media Source:


Media Source: Roll-fed, Fanfold

Media Type:


Media Type: Plain, Matte, Glossy, Synthetic

Paper Specifications:


External Roll Diameter: Max. 101.6mmPaper Core External Diameter: Plain Label, Matte Label, Synthetic Label: min. 44.1mm
Glossy Label, Wristband: min. 56.8mmNumber Of Folds: Fanfold Paper: 500 or LessWinding Direction: Face Out

Autocutter Life:


Paper: Plain: 1,500,000 cuts
Matte: 750,000 cutsDie-cut Label: Plain, Matte, Glossy: 1,500,000 cuts
Synthetic: 500,000 cutsFull Page Label: Synthetic: 100,000 cuts
Glossy: 300,000 cuts
Matte: 500,000 cuts
Plain: 750,000 cutsWristband: 200,000 cuts

Temperature / Humidity:


Printing: Printing: 10 - 35°C / 20 - 80% RH; Barcode Printing: 15 - 35°C / 20 - 80% RHStorage: -20 - 60°C / 5 - 85% RH (Without Ink )

Overall Dimensions:

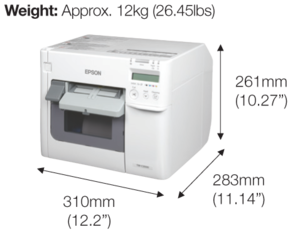

Overall Dimensions: 283 (D) x 310 (W) × 261 (H) mm

Mass:


Mass: Approx. 12.0kg

Power Supply:


Power Supply: Dedicated AC Adapter

Power Consumption:


Standby: Approx. 2.5W (mean)Printing: Approx. 30W (mean)

EMC Standards:


EMC Standards: VCCI Class B, FCC / ICES-003 Class B, CE Marking, C-Tick Class B, CCC, BSMI, MIC, Ukraine EMC

Safety Standards:


Safety Standards: UL, CSA, TÜV (EN60950-1), GOST, CCC, BSMI

Power:


Rated Voltage: 100 - 240 VRated Frequency: 50 - 60 HzPower Supply: Dedicated AC Adapter

General:


Operating Systems: Windows® XP SP2 (64bit) / SP3 (32bit), Windows Vista® SP2 (32bit / 64bit), Windows® 7 SP1 (32bit / 64bit), Windows Server® 2003 R2 SP2 (32bit / 64bit), Windows Server® 2008 R2 SP2 (32bit / 64bit)
Windows Server® 2012, Windows® 8 (32bit / 64bit), Windows Server® 2008 R2 SP1

Fanfold:


Black Mark Continuous Paper: Width: 50 - 108 mm
Thickness: 0.124 - 0.128 mmBlack Mark Die-cut Label: Label Width: 46 - 108 mm
Backing Paper Width: 50 - 112 mm
Thickness: 0.161 - 0.164 mm

Roll:


Continuous Paper: Width: 30 - 108 mm
Thickness: 0.084 - 0.124 mmBlack Mark Continuous Paper: Width: 30 - 108 mm
Thickness: 0.084 - 0.124 mmFull-page Label: Label Width: 25.4 - 108 mm
Backing Paper Width: 30 - 112 mm
Plain Label, Matte Label, Synthetic Label Thickness: 0.129 - 0.195 mm
Glossy Label Thickness: 0.184mmTransparent Full-page Label: Label Width: 25.4 - 108 mm
Backing Paper Width: 30 - 112 mm
Plain Label, Matte Label, Synthetic Label Thickness: 0.129 - 0.195 mm
Glossy Label Thickness: 0.184mmDie-cut Label (gap): Label Width: 25.4 - 108 mm
Backing Paper Width: 30 - 112 mm
Plain Label, Matte Label, Synthetic Label Thickness: 0.129 - 0.195 mm
Glossy Label Thickness: 0.184mmTransparent Die-cut Label: Label Width: 25.4 - 108 mm
Backing Paper Width: 30 - 112 mm
Plain Label, Matte Label, Synthetic Label Thickness: 0.129 - 0.195 mm
Glossy Label Thickness: 0.184mmBlack Mark Die-cut Label: Label Width: 25.4 - 108 mm
Backing Paper Width: 30 - 112 mm
Plain Label, Matte Label, Synthetic Label Thickness: 0.129 - 0.143 mm
Glossy Label Thickness: 0.184mmWristband: Width: 30mm
Thickness: 0.190 - 0.225 mm

Notes:

* The protrusion excluded.

Usage Restrictions:

  • When this product is used for applications requiring high reliability / safety such as transportation devises related to aviation, rail, marine, automotive etc.; disaster prevention devises; various safety devise etc; or functional / precision devise etc, you should use this product only after giving consideration by inclusion of fail-safes and redundancies into your design to maintain safety and total system reliability. Because this product was not intended for use in applications requiring extremely high reliability / safety such as aerospace equipment, main communication equipment, nuclear power control equipment, or medical equipment related to direct medical care etc, please make your own judgment on this product’s suitability after full evaluation.
  • Epson ColorWorks ink is not intended for direct food contact printing.
