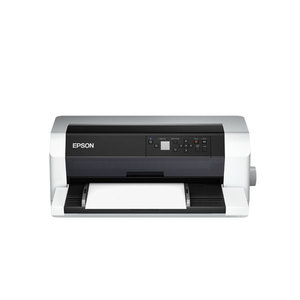

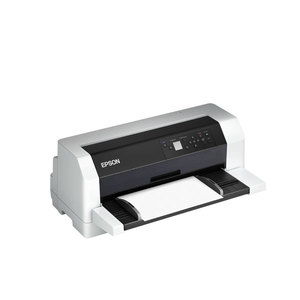

Epson DLQ-3500II Dot Matrix Printer

Deliver Precise and Reliable Copies Everytime

Achieve detailed precision for your printing needs with Epson DLQ-3500II, the first Dot matrix printer with colour LCD monitor panel. Built to deliver extreme print volume requirements and extraordinary output quality with print speeds of up to 550 ccharacters per second (cps), up to eight-part forms with absolute accuracy as well as ribbon yield of up to 6 million characters, the versatile DLQ 3500II dot matrix printer is the ideal solution to maximise business efficiency.

Where to Buy

Support

Overview

Fast and durable wide carriage Epson 24 pin flat-bed printer
Prints up to 550 characters per second
Automatic paper handling and automatic paper thickness adjustment
Prints up to 8 part forms (1 original + 7 copies)

What's in the box:

Ribbon cartridge (Black)
Power Supply Cable
CD Driver
Front sheet guide
User guide

Specifications

Printing Technology:

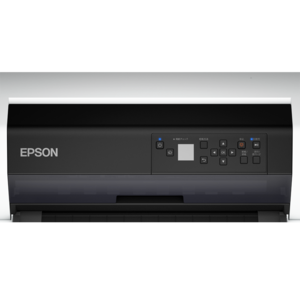

Print Method: Impact dot matrixControl Panel: 13 switches and 3 LEDs with 1.44” CLR LCD ScreenPrint Direction: Bi-direction with logic seekingColour: BlackNumber of Pins in Head: 24 pins x 2 (total 48 pins)Control Code: ESC/P2 and IBM PPDS emulation

Print Speed:

High Speed Draft: 10 cpi: 550 cpsDraft: 10 cpi: 550 cps
Condensed, 17 cpi: 501 cpsLetter Quality: 10 cpi: 195 cps
Condensed, 17 cpi: 333 cps

Reliability:

Printhead Life: 200 million strokes / wireMean Print Volume Between Failure (MVBF): 25 million lines (except print head)Mean Time Between Failure (MTBF): 10,000 Power On Hours (POH)

Print Characteristics:

Character Sets: 1 Italic and 12 graphical character tables
Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese)³, PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Special Font (Thai Model only): Busaba, Jittra Font
Supported 7 character tables: KU42, TIS11, TIS13, TIS16, TIS17, TIS18, TSM/WINBitmap Fonts: EPSON Draft/ Courier: 10 / 12 / 15 cpi ; EPSON Roman /Sans Serif: 10 / 12 / 15 cpi, Proportional ; EPSON Prestige: 10 / 12 cpi ; EPSON Script/ OCR-B/ Orator/ Orator-S: 10 cpi ; EPSON Script C: ProportionalScalable Fonts: EPSON Roman/ Sans Serif/ Roman T/ Sans Serif H: 10.5 pt, 8 pt – 32 pt (every 2 pt)Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Path:

Manual Insertion: Front in, front outPush Tractor: Rear in, front outPull Tractor: Rear in, front out

Paper Media:

Cut Sheet (Single Sheet): Length: 80.0 - 420.0mm (3.15 - 16.5")
Width: 90.0 - 420.0mm (3.15 - 16.5")
Thickness: 0.065 - 0.19mm (0.0025 - 0.0074")Cut Sheet (Multi-part Forms): Length: 80.0 - 420.0mm (3.15 - 16.5")
Width: 90.0 - 420.0mm (3.15 - 16.5")
Thickness: 0.12 - 0.62mm (0.0047 - 0.0244")Continuous Paper (Single Sheet / Multi-part): Length: 76.2 - 558.8mm (3.0 - 22.0")
Width: 101.6 - 406.4mm (4.0 - 16.0")
Thickness: 0.065 - 0.19mm (0.0025 - 0.0074")Envelope (No.6): Length: 92.0mm (3.6”)
Width: 165.0mm (6.5”)
Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”)Envelope (No.10): Length: 105.0mm (4.1”)
Width: 241.0mm (9.5”)
Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”)Labels: Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0")Card: Length: 100.0 - 200.0mm (3.9 - 7.8")
Width: 100.0 - 200.0mm (3.9 - 7.8")
Thickness: 0.22mm (0.0087")Copy: 1 original + 7 copiesLine Spacing: 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

Supported OS and Applications:

Supported OS: Windows Server® 2008 Standard / Enterprise (32bit / 64bit), R2 Standard / Enterprise (64bit)

Dimensions and Weight:

Dimensions (W x D x H): 661 x 433 x 276 mmWeight: 18.9kg

Consumables:

Consumables: Ribbon Cartridge (Black): C13S015587

Environmental Conditions (Operating):

Temperature:² 5 - 35°CHumidty: 10 - 80 % RHElectrical Specification: Rated Voltage: AC 100 - 240V
Rated Frequency: 50 - 60 Hz
Power Consumption (Operating): Approx. 78W
Power Consumption (Sleep Mode): Approx. 0.8W

Acoustic Noise:

Acoustic Noise: Approx. 59 dB(A) (ISO 7779 pattern)

Input Data Buffer:

Input Data Buffer: 128 KB

Interface:

Interface: Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Optional Serial Interface Board (No Buffer Type-B)

Printable Columns:

Pitch: 10 cpi: 136 columns

Ribbon Cartridge:

Standard: Fabric Ribbon Cartridge (Black)Ribbon Life: Approx. 6 million characters¹

Supported Operating System:

Printer Driver: Microsoft Windows^® XP / Vista / 7 / 8 / 10Utility: Epson Status Monitor 3: Microsoft Windows^® XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows^® XP / Vista / 7 / 8 / 10
