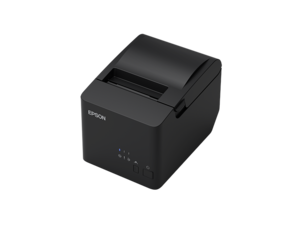

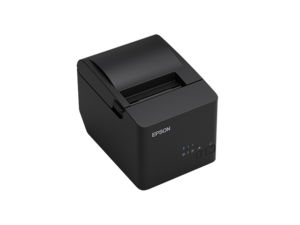

Epson TM-T81III POS Printer

SPEED AND COST EFFECTIVE PRINTING.

Give your business the best support with the TM-81III. Equipped with high-speed printing of up to 200mm/s and durable machine body, it is a perfect printing solution for your business. Using only 1W while on standby, and utilising 30% less paper for printing, you can now save both cost without compromising on quality.

Support

Overview

Unrivalled Performance
MCBF of 60 million lines and an auto-cutter life of 1.5 million cuts.

Ease-of-use
The T81III features drop-in paper loading, auto cutter and status LEDs.

Paper Saving
Reduce paper margins, line spacing, and barcode heights with Epson's automatic paper saving function.

Specifications

General Information:

Supported Operating Systems: Windows, Mac, Linux

Option:

External Buzzer: Yes

Print Font:

Font: 9 x 17 / 12 x 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24Characters Per Inch: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpiCharacter Size (W x H): 0.88 x 2.13 mm / 1.25 x 3 mm, Hanji font: 3 x 3mm, Thai font: 9 x 24 / 12 x 24Character Set: 95 Alphanumeric, 18 set International, 128 × 43 pages (including Thai / Viet and user-defined page) Hanzi: Simplified Chinese: GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Print Speed:

Print Speed: Max 200mm/s

Paper:

Width and Roll Diameter: 79.5 ± 0.5mm

Overall Dimensions (D x W x H):

Overall Dimensions (D x W x H): 192 x 149 x 144 mm

Printing Method:

Printing Method: Thermal Line Printing

Standard Accessories:

Standard Accessories ROM: Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, USB cable for USB + Serial model

Dot Density:

Dot Density: 203 x 203 dpi

Mass:

Mass: Approx. 1.5kg

EMI and Safety Standards:

Safety Standards: Singapore IEC62368-1, China EMI GBT9254/ GB17625.1

Interface:

Interface: Built-in USB + Serial (9pin) / Ethernet Interface

Reliability:

MTBF: 360,000 hoursMCBF: 60,000,000 linesPrinter Mechanism Life: 15 million linesAuto Cutter Life: 1.5 million cuts

Power:

Power Consumption: Operating: Approx. 27.8 W
Standby: Approx. 0.96 WPower Supply: Built-in power supplySupply Voltage: AC 100 to 230V / 50 to 60 Hz

Receive Data Buffer:

Receive Data Buffer: 4KB or 45 bytes

Printer Details:

Other Features: Built-in: Automatic Paper Reduction, Automatic paper cut with logo printing, QRCode Quick Pairing (for Ethernet Model only)
