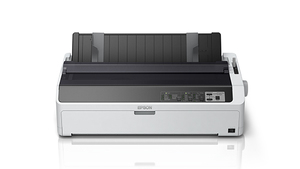

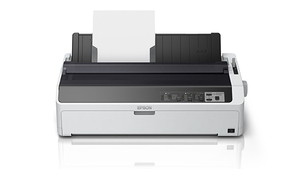

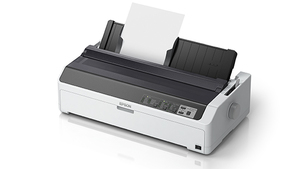

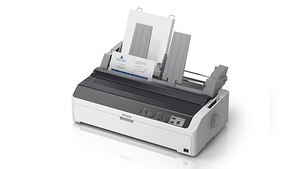

Epson LQ-2090II Dot Matrix Printer

Zoom In
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer
Epson LQ-2090II Dot Matrix Printer

BUILT FOR RELIABILITY, ENGINEERED FOR CONVENIENCE.

Enjoy fast, reliable and convenient printing with Epson’s LQ-2090II dot matrix printer. Based on Epson’s experience in delivering industry-standard solutions, this printer helps to run and grow your business while you stay in control of your operations. Experience unparalleled durability and minimum downtime with a mean time between failure (MTBF) rating of 25,000 POH (power on hours) and printhead life of up to 400 million characters. A high character yield of up to 8 million means low running costs and more affordable prints.

      • 24-pin wide carriage
      • Speed: Up to 487 cps (10cpi)
      • Prints up to 7-part forms
      • 25,000 power on hours MTBF
      • USB 2.0, Bi-directional Parallel Supported



Find Accessories Support

Increate Productivity
Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.

Multiple Copy Capability
High copy capability of up to 7 layers (1 original + 6 copies)^ means sharp, clear documents right through the last copy.

^ For continuous paper only.

What's in the box:

User’s manual
Driver disc

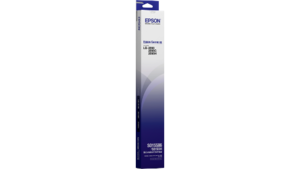

Ribbon cartridge (Black)
Power supply cable

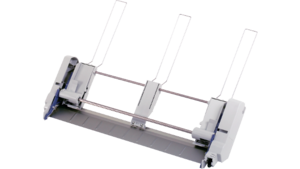

Push tractor unit
Rear sheet guide

Printing Technology:

Print Method: Impact dot matrixControl Panel: 6 switches and 10 LEDsPrint Direction: Bi-direction with logic seekingNumber of Pins in Head: 24 pinsControl Code: ESC/P2, IBM PPDS

Print Speed:

Ultra High Speed Draft: 10cpi: 550cpsHigh Speed Draft: 10 / 12 cpi: 487 / 584 cpsDraft: 10 / 12 cpi: 366 / 439 cpsLetter Quality: 10cpi: 121cps

Reliability:

Printhead Life: 400 million strokes / wireMean Print Volume Between Failure (MVBF): 50 million lines (except printhead)Mean Time Between Failure (MTBF): 25,000 Power On Hours (POH) (25% Duty)

Print Characteristics:

Character Sets: 1 Italic and 12 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese)*1
PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15Bitmap Fonts: 10, 12, 15 cpiScalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Path:

Manual Insertion: Front or rear in-top outPush Tractor: Front or rear in, top outPull Tractor: Front, rear or bottom in, top out

Paper Media:

Cut Sheet (Single Sheet): Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)
Entry: Rear
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)Cut Sheet (Multi-part Forms): Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”)
Copies: 1 Original + 5 copiesContinuous Paper (Single Sheet / Multi-part): Entry: Front, Rear, Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.065 - 0.49 mm | (0.0025 - 0.019”)
Copies: 1 Original + 6 copiesEnvelope (No.6): Entry: Rear
Length: 92mm | (3.6”)
Width: 165mm | (6.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)Envelope (No.10): Entry: Rear
Length: 105mm | (4.1”)
Width: 241mm | (9.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)Label (Base Sheet): Entry: Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.16 - 0.19 mm | (0.0063 - 0.0075”)Card: Entry: Front, Rear
Length: 100 - 148 mm | (3.9 - 5.8”)
Width: 100 - 148 mm | (3.9 - 5.8”)
Thickness: 0.22mm | (0.0087”)Roll Paper: Entry: Rear
Width: 216mm | (8.5”)
Thickness: 0.07 - 0.09 mm | (0.0028 - 0.035”)Line Spacing: 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

Environmental Conditions (Operating):

Temperature: 5 - 35 °C *3Humidty: 10 - 80% RH *3

Acoustic Noise:

Acoustic Noise: 55dB

Input Data Buffer:

Input Data Buffer: 128KB

Interface:

Interface: USB 2.0, Bi-directional parallel
(IEEE-1284 nibble mode supported)

Printable Columns:

Pitch: 10cpi: 136 columns

Ribbon Cartridge:

Standard: Fabric Ribbon Cartridge (Black)Ribbon Life: Approx. 8 million Characters*2

Supported Operating System:

Printer Driver: Microsoft Windows XP / Vista / 7 / 8 / 10Utility: Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 PC861(Icelandic), Abicomp, BRASCII, Roman 8, ISO Latin 1 only not available for Thai version.

*2 Actual print yield may vary depending on usage purpose and environment.

*3 Without condensation.
